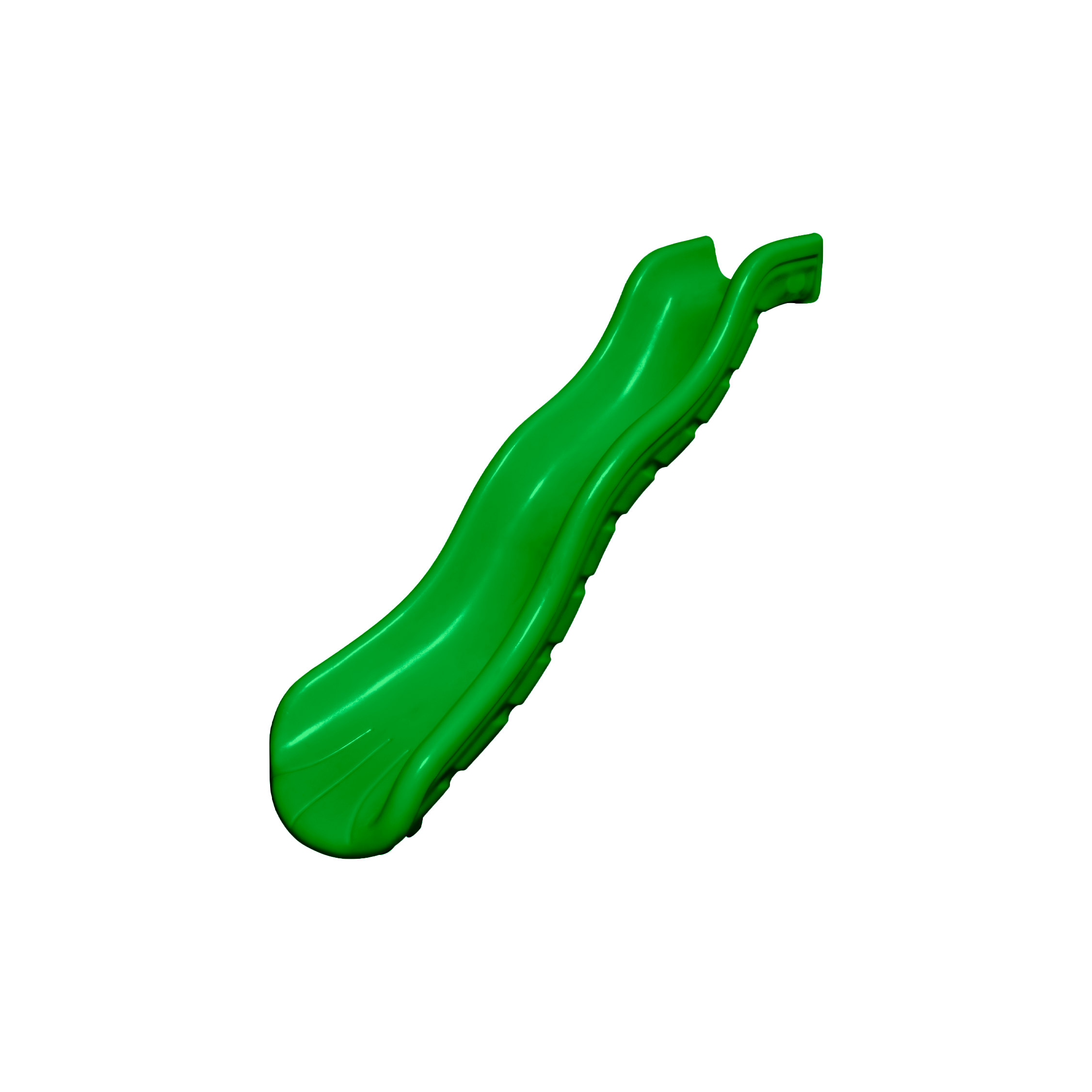

Our new wave slides are designed to be tough and long-lasting, so you can enjoy them for years to come. They’re available in two vibrant colors – blue and green – to add a fun splash of color to your backyard playset.
The 8-foot slide measures 106 x 28 x 15 inches and is perfect for a 4-foot platform, while the 10-foot slide measures 119 x 23 x 17 inches and is ideal for a 5-foot platform. Please note that these slides need to be shipped LTL to ensure they arrive safely and securely. Weight limit 300 lbs.
**Installation, Safe Use and Maintenance Instructions**
IMPORTANT: Please read for important information. In this material we have tried to provide some requirements stated in the CPSC Handbooks, ASTM F2373-11, F1487-11 and F1148-09. However, we in no way intend for this to be a complete list of requirements. Also these publications are updated frequently with changes therefore, you should read these publications yourself to determine if any part or installation could prove a danger to a child.
To help keep children safe from harm, review installation and maintenance instructions before installing equipment. These are located in the description of every product on our website. www.americanswing.com Download and print these instructions and keep in a safe place. Our website also has a “Product Testing Information” page. All products are tested for lead, phthalates and tensile strength. You can also call us at 1-800-433-2573 for more information or see http://www.cpsc.gov/cpscpub/pubs/325.pdf.
Due to the thermo dynamics and lower heat transfer properties of plastics, plastic slides are preferred over metal slides for play equipment. Although plastic slides may become as hot as metal, they insulate better and don’t transfer the heat as quickly. Because of these properties, the Consumer Product Safety Commission (CPSC) recommends plastic slides and plastic surfaces over bare metal.
Regardless of lower heat transfer properties, plastic play equipment can still become hot enough ‐‐ in extreme temperatures and direct sunlight ‐‐ to cause burns. Plastic slides are safe, tried and true, but as is the case with all playground equipment, parents and supervisors must monitor the children in their care, make certain that the equipment is appropriate for their age, and always check playground surfaces for excessive heat before allowing children to play. For more information, contact IPEMA headquarters at firstname.lastname@example.org or by calling 1‐717‐238‐1744.
WARNING: Instruct children to never run up the slide and to slide down feet first. Tell children to make sure the bottom of the slide is unobstructed before going down the slide. Do not use slide when wet. Do not use equipment until fully assembled. Consider proper drainage and place slide in shaded area or located out of direct sun. Slides exposed to intense sun can burn.
No span of the sliding surface should have a slope that exceeds 30 degrees. Handrails or other means of hand support should be installed at the slide chute entrance to make it easy for children to go from standing to sitting. There should be guard rails to transit the child into the slide chute. The transition platform should be as wide as or wider than the slide entrance.
Installation: Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 1-800-433-2573.
There are 2 indentations at the top of the slide to drill in either 2 Truss head wood screws or pan head wood screws. The bottom needs to be on a flat surface preferably one that will not let the end sink in the ground. Place slide in shade so that plastic does not get hot.
Safe Use: This is for children 2 – 12 years old only. Adults should supervise children at all times. Do not allow children to stand on or use unsafely. Do not allow it to be used if damaged. Instruct children to never run up the slide and to slide down feet first.
Maintenance: At beginning and end of each play season and once a month during play season, check for cracks in plastic, paying particular attention to the top of slide where attached to platform. Check for rusty screws, missing or loose hardware or evidence of vandalism. Check for cracks in wood or splinters. Replace parts as necessary. Make sure there are no exposed footings, anchoring devices, rocks, roots, holes or any other obstacles in or around the slide. Maintain detailed inspection and maintenance records for public-use playground equipment.
Any damage from vandalism, abuse or misuse VOIDS all warranties.
Colors: Blue, Green
DISCLAIMER 1-10-07 The 8 and 10’ SLIDE NEEDS TO BE SHIPPED FREIGHT LINE. BEFORE SIGNING FREIGHT BILL CHECK THE SLIDE OUT FOR DAMAGE. WE CAN NOT REPLACE A DAMAGED SLIDE UNLESS THE FRIEGHT BILL IS SIGNED DAMAGED WHEN RECIEVED. IF YOU DO NOT HAVE TIME TO INSPECTION, PLEASE SIGN FRIEGHT BILL: MAY BE CONCEALED DAMAGE. IF YOU REQUEST A LIFT GATE AT TIME OF DELIVERY THERE IS AN ADDITIONAL FEE OF $240.00.
