No returns or warranty on discontinued stock.
In Stock: 240

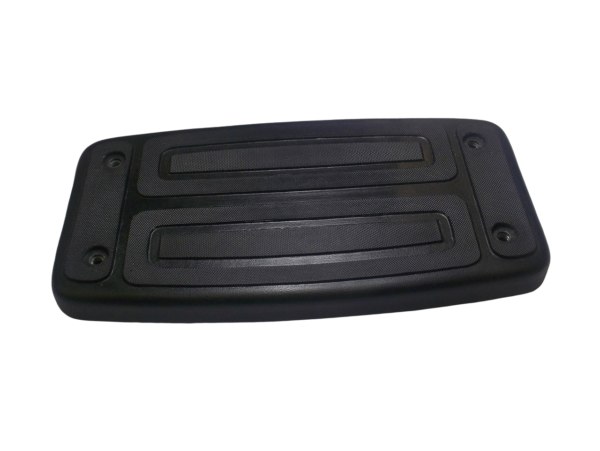

This European style seat is rubber injection molded form T.P.R. over cast rib reinforced aluminum core, ensuring maximum strength and durability. “A” frame one piece brackets are attached with nylon and zinc plated flat washers. The hanger part number is A1027H. Between hangers the seat size is 13.5”. The whole seat is 9” x 17.5”. This seat should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner. Holds up to 1710 lbs. No returns or warranty on discontinued stock.
**Installation, Safe Use and Maintenance Instructions**
IMPORTANT: To keep children safe from harm, follow these precautions and instructions when installing, using, or maintaining this playground equipment. You can also call us at 1-800-433-2573 for more information or see http://www.cpsc.gov/cpscpub/pubs/325pdf.
Installation: Make sure when seat is installed the warning label is visible. Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 1-800-433-2573.
To assemble take hardware out of bag and put the two washers on the top of the seat. Then put the hanger on top of washers, if needed use a hammer to insert through the holes, then flip the seat over and attach nuts and tighten past the nylock. You will need to connect S-hooks or shackles from the triangular hardware on the seat to the chain and then S-hooks or shackles from the chain to the swing hangers. The seats need to be not more than 2 ft off the ground. Hangers need to be spaced 2 ft from the end of the set and 2 ft apart for each swing. You will need to make sure the S-hooks are closed to within .04 to meet ASTM safety standards. To do this you will need to use our S-hook pliers or a regular pair of channel lock pliers. WARNING: Once the S-hooks have been opened they will have to be replaced to avoid injuries from coming open and/or breaking. Make sure that the shackles used are tightened and if you use the shackle swing hangers for the chain that these also are tightened. Inspect regularly or use Loctite® to make sure bolt is still tight.
Safe Use: This seat is for children 5-12 year olds only. Not for Adults. Adults should supervise children at all times. Do not allow children to stand on seat or use unsafely. Do not allow it to be used if damaged.
Maintenance: Do monthly routine maintenance checks for cracks, rust, missing rivets, open S-hooks or evidence of vandalism such as cutting, metal showing through the material or children standing on seats and crushing or bending the seats. Also tighten any loose nut or bolts. Make sure there are no exposed footings, anchoring devices, rocks, roots, holes or any other obstacles in or around playground equipment. This will reduce serious injuries. In high use areas these inspections should be done more frequently. Clean with mild soap and water when you do the monthly maintenance checks. If you see wear on a swing, replace all swings purchased at the same time. Remove swings from set when temperature reaches zero or over 100°.
Any damage from vandalism, abuse or misuse VOIDS all warranties.
