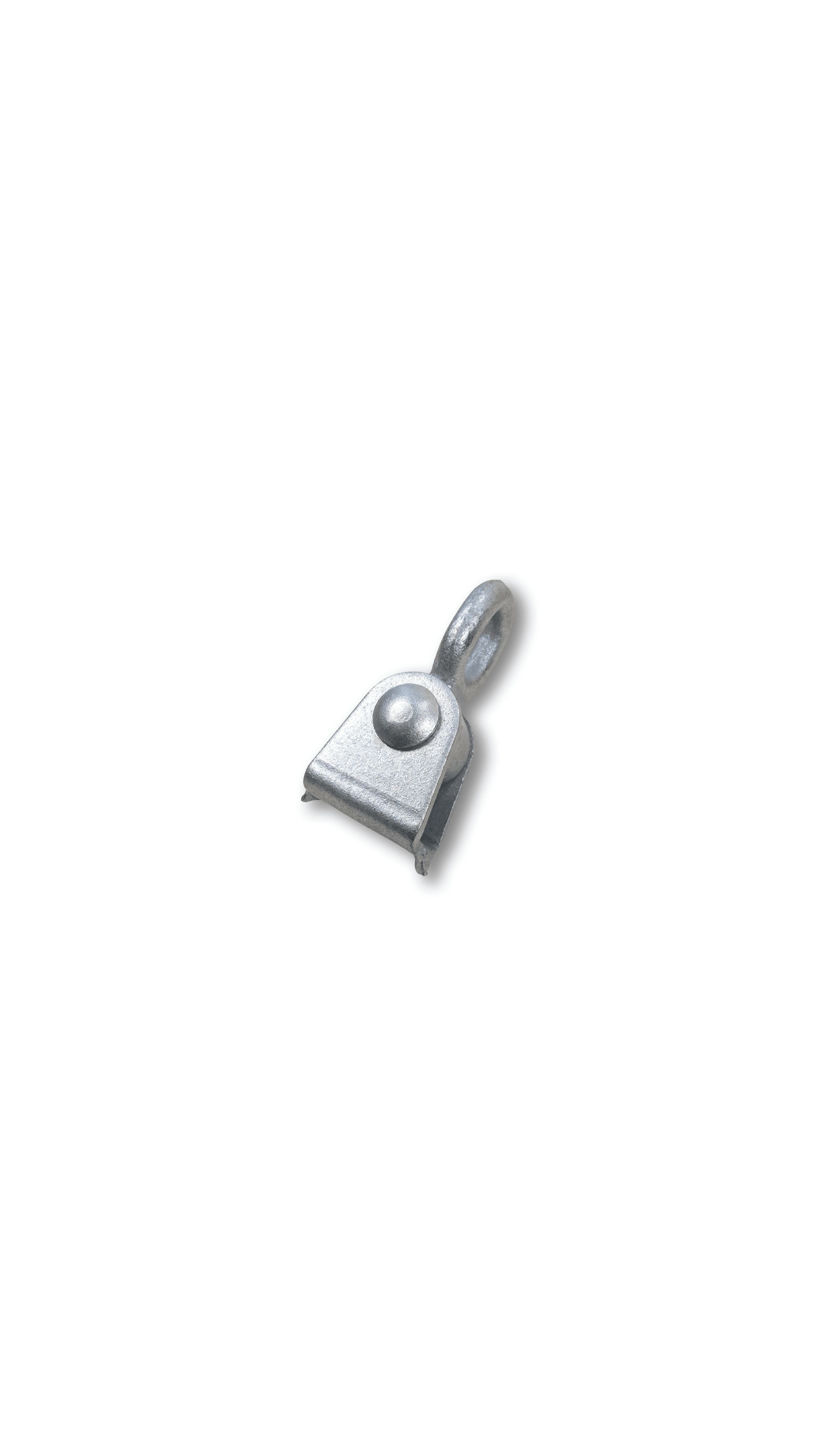

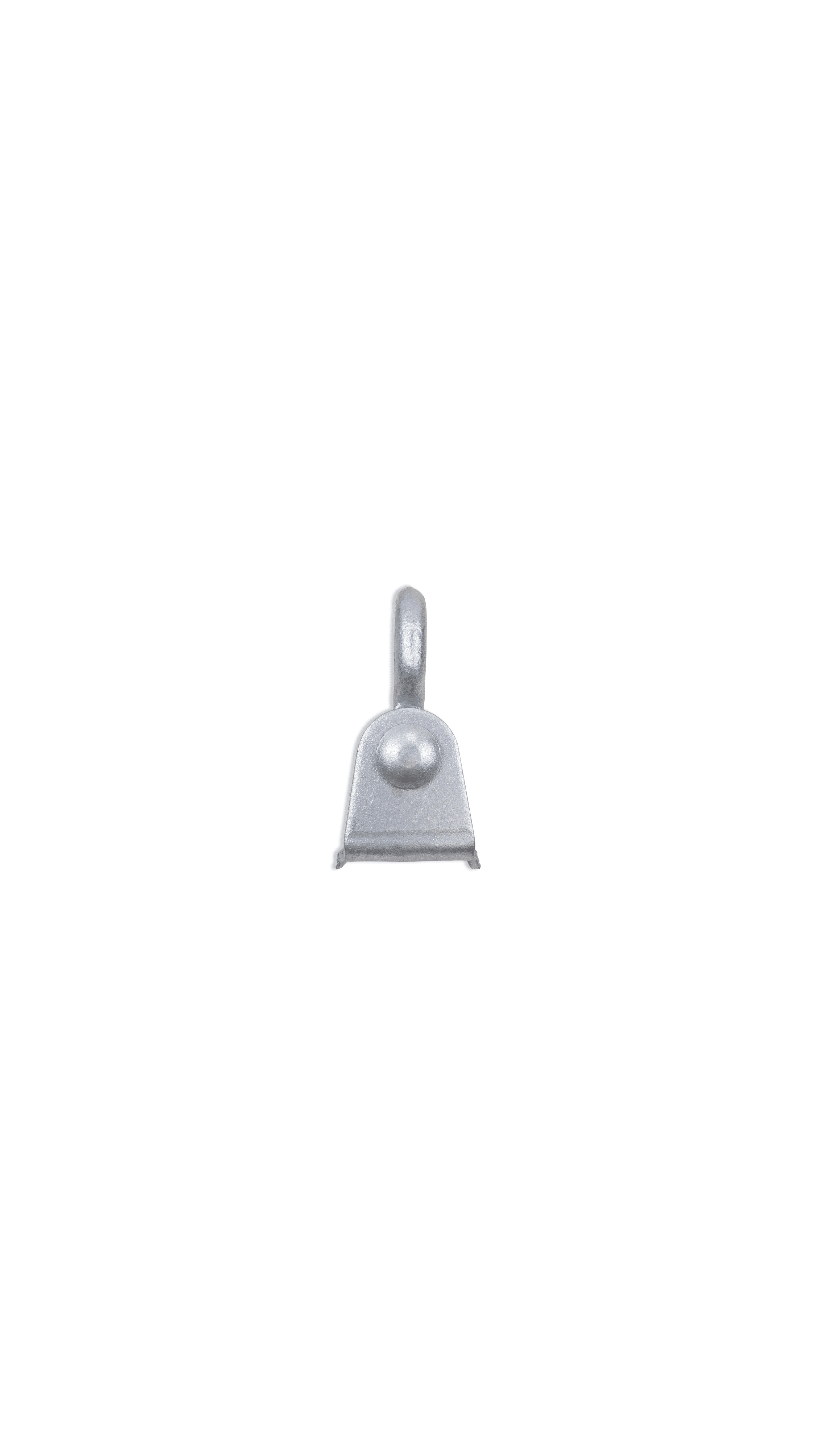

Looking for a reliable wood beam hanger that can withstand both residential and commercial use? Look no further than our sturdy one-bolt hanger! With teeth on top of the hanger to keep it from turning after installation, this hanger is a great option for wooden swing frames. It features a .51 ID oil light bearing and axle bolt with a lock tight nut and accepts a 12mm bolt. Please note that the nut and bolt are not included with this product. In harsh conditions, this hanger is expected to last about 2 years, but it can last up to 5 years in optimal conditions. However, some conditions may require replacement sooner. With a tensile strength of 9900 lbs., you can trust this hanger to be a strong and reliable choice for your play equipment needs.
**Installation, Safe Use and Maintenance Instructions**
IMPORTANT: Please read for important information. In this material we have tried to provide some requirements stated in the CPSC Handbooks, ASTM F2373-11, F1487-11 and F1148-09. However, we in no way intend for this to be a complete list of requirements. Also these publications are updated frequently with changes, therefore, you should read these publications yourself to determine if any part or installation could prove a danger to a child.
To help keep children safe from harm, review installation and maintenance instructions before installing equipment. These are located in the description of every product on our website. www.americanswing.com Download and print these instructions and keep in a safe place. Our website also has a “Product Testing Information” page. All products are tested for lead, phthalates and tensile strength. You can also call us at 1-800-433-2573 for more information or see http://www.cpsc.gov/cpscpub/pubs/325.pdf.
Installation: Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 800-433-2573.
The beam hanger must have pendulum removed by loosening nut and removing bolt holding pendulum in swing hanger. The long part of hanger is placed perpendicular to wood beam. Determine spacing of swing hangers on wood beam by consulting either Figure 23, Table 7 for commercial swings, or for residential sets see spacing dimensions for ASTM 1148 diagram. Mark wood beam with correct spacing, then place hanger on bottom of wood beam and mark hole with pencil. Using a power drill with a ½” bit, drill holes through wood beam. Insert appropriate length carriage bolt with flat washer on either side of wood beam, so carriage bolt points downwards. The bolt, washers and nut are not included. Pay attention to bolt length. It must be long enough to go through hanger, but not so long as to impede re-attachment of pendulum. After inserting bolt, attach lock nut to carriage bolt and bottom washer. Teeth on top of hanger should sink into wood as nut is tightened. If necessary, hit hanger with rubber mallet, so that teeth are firmly sunk in wood. This will prevent hanger from turning. Check that the bolt is attached with no more than two threads showing beyond the nut. Check to see bolt is straight and nut is tight. Make sure swing hanger is straight. Replace pendulum into hanger, making sure nut is tight with no more than two threads protruding past nut, and that the pendulum can swing freely. You will need to use S-hooks or H-shackles from the chain to the swing hangers. Make sure the S-hooks are closed to within .04 to meet ASTM safety standards. To do this you will need to use our S-hook pliers or a regular pair of channel lock pliers. WARNING: Once the S-hooks have been opened they will have to be replaced to avoid injuries from coming open and/or breaking. If using an H-shackle the large end goes thru the swing hanger. Using a A5750 wrench to open and close bolts. Make sure that if you are using shackles they are also tightened. All fasteners must be closed according to Figure A1.19.
Protective surfacing that meets ASTM F1292 must be installed under swing set and extends at least six feet from the sides of the set and twice the height of the top bar in the front and back of swing set. Protective surfacing is one of the most important things that you can do to reduce the likelihood of serious injuries.
The new CPSC standard states the owner/operator of the swing set needs to post warning signs outside the use zone that are readily visible to the intended viewer and alert them to the potential hazard in time to take appropriate action. This message may be on either a sign or label outside the use zone. Signs should be posted that state the appropriate age group for the swing set. Not for Adults. Adults should supervise children at all times. Do not allow children to stand on or use unsafely. Do not allow set to be used if damaged. Remove helmets, drawstrings or accessories around the neck which are all known to create head entrapment or entanglement hazards. Where applicable, hot play surfaces are known to reach temperatures high enough to cause serious burns to children generally less than 4 years of age.
Specifications for all warning signs or labels should conform to ANSI Z535.1 and ANSI Z535.1 or ANSI Z535.1 in the following areas: legibility, type of lettering, clarity of message and symbol, color specifications and work message and visibility. The labels or signs should be durable and conform to UL 969. It has been and continues to be the responsibility of the owner/operator to replace signs or labels or both should they become illegible, destroyed or removed. Signs can be purchased at http://www.mindspring.com/~safetyplay.
Safe Use: This is for children 0 – 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.
Maintenance: At beginning and end of each play season and once a month during play season, check for sharp edges and/or cracks in hanger, paying particular attention to surface around bolt hole. Check for cracks in wood around bolt hole. Check to see if oil lite bearing in swing hanger pendulum is worn or cracking. When worn or cracked, replace pendulum. Check for vandalism. Replace parts if necessary. Check to make sure lock nuts are tight. Maintain detailed inspection and maintenance records for public-use playground equipment.
Any damage from vandalism, abuse or misuse VOIDS all warranties.
