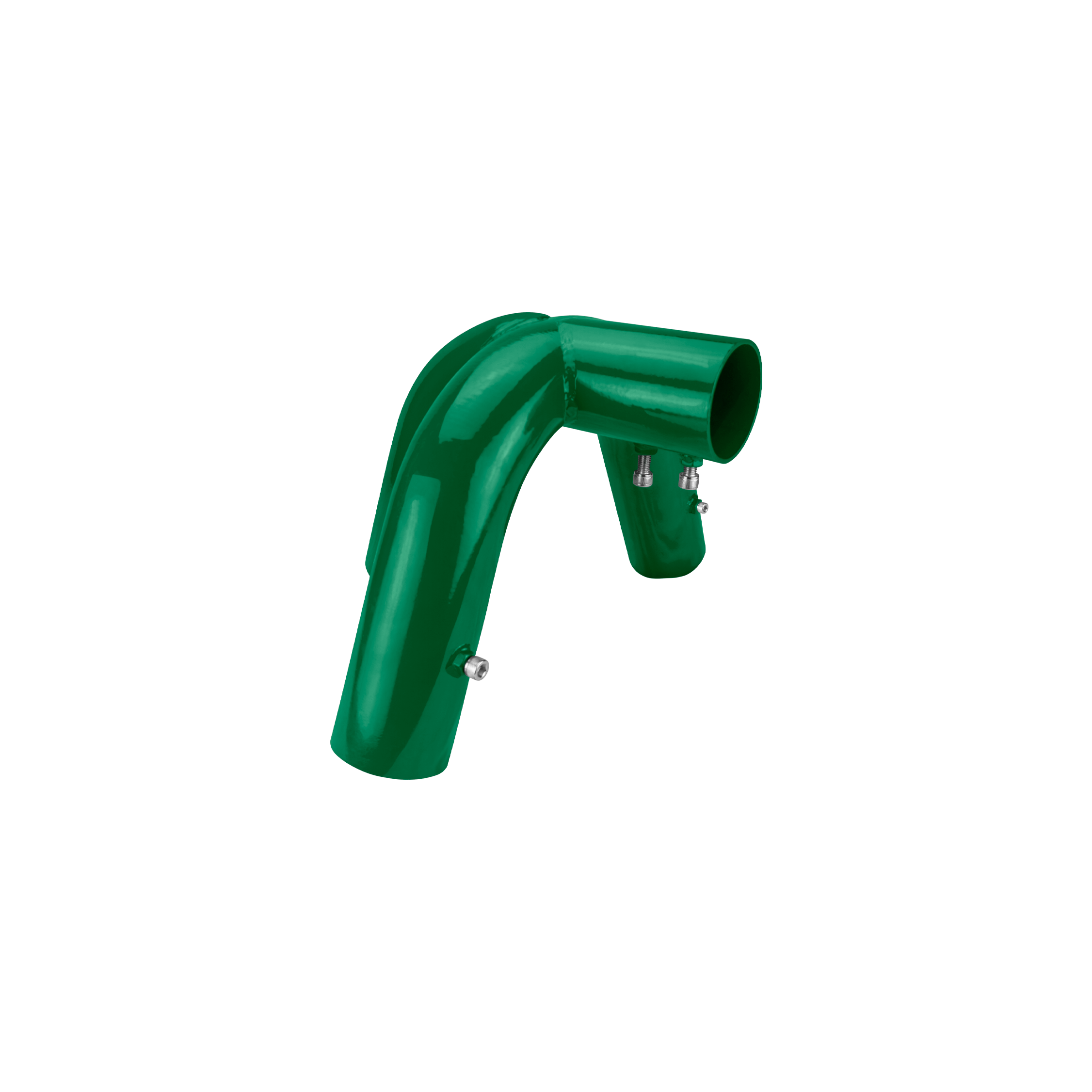

End Frame Fitting for 3½” Pipe – 3 Legs

$275.70

SKU:

A3050

Weight:

36 LBS

Shipping:

Free Shipping

Clear
Product Description

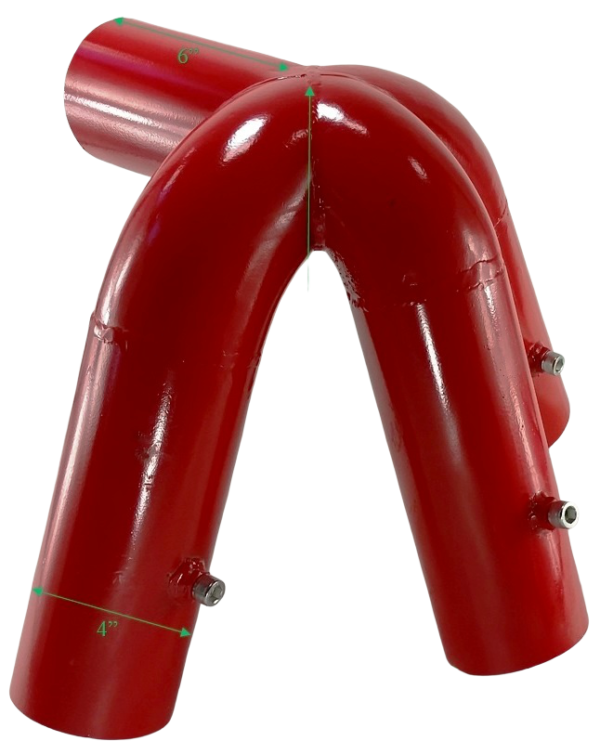

Introducing our Extra Heavy Duty Three Legged End Frame Fitting, perfect for your swing set needs! With 3 1/2” legs and top-rail, this fitting is designed for schedule forty 3″ pipe, with a 2” ID and 3 1/2” OD. The pipe easily slides into the top rail up to 5 1/2″ and into the leg up to 9 1/4″, ensuring stability and durability during use.

Our heavy duty welded fitting is much stronger than aluminum and will not break, making it a reliable choice for your swing set construction. In harsh conditions, this product should last for 2 years, and up to 5 years in optimal conditions. Please note that some conditions may require replacement sooner.

Each fitting is sold individually, allowing you to customize and create your ideal swing set design. The set screws are 12 millimeter and require a 10 millimeter Allen wrench, making installation a breeze. Invest in our Extra Heavy Duty Three Legged End Frame Fitting for a strong and reliable addition to your swing set.

 **Installation, Safe Use and Maintenance Instructions**

IMPORTANT: Please read for important information. In this material we have tried to provide some requirements stated in the CPSC Handbooks, ASTM F2373-11, F1487-11 and F1148-09. However, we in no way intend for this to be a complete list of requirements. Also these publications are updated frequently with changes therefore, you should read these publications yourself to determine if any part or installation could prove a danger to a child.

To help keep children safe from harm, review installation and maintenance instructions before installing equipment. These are located in the description of every product on our website. www.jensenswing.com   Download and print these instructions and keep in a safe place. Our website also has a “Product Testing Information” page. All products are tested for lead, phthalates and tensile strength. You can also call us at 1-800-227-7529 for more information or see http://www.cpsc.gov/cpscpub/pubs/325.pdf.

Installation: Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 800-433-2573.

These fittings require schedule 40 3” pipe for both the top beam and legs. Schedule 40 3” pipe is 3” inside diameter and 3 1/2” outside diameter. To determine amount of pipe needed for top beam and proper use zones needed for swing set consult Figure 23, Table 7 for commercial swing sets. Swings intended for the same age groups should be suspended from structures that are separate from those for other swings for different age groups, or at least suspended from a separate bay of the same structure. For instance, a full bucket swing should be in the same bay with another full bucket swing, not a full bucket and a strap seat in the same bay. To minimize the likelihood of children being struck by a moving swing, it is recommended that no more than two swings be hung in each bay of the supporting structure.   For residential sets see spacing dimensions See Page 4 of the Outdoor Home Playground Safety Handbook, http://www.cpsc.gov/cpscpub/pubs/324.pdf.. Install swing set where a child can easily be supervised and not in direct sun. Do not install playground equipment over concrete, asphalt, or any other hard surface. A fall onto a hard surface can result in serious injury to the equipment user. Grass and dirt are not considered protective surfacing because wear and environmental factors can reduce their shock absorbing effectiveness. Carpeting and thin mats are generally not adequate protective surfacing. Install your play equipment on level ground with adequate surfacing and anchoring. Use proper hardware, and tighten all connections.

Lay out all the pipes and end frame fittings on the ground. Arrange them as they will eventually be connected as the finished assembly, approximately, two to three feet from where the set will set into the ground. Slide the two end frame fittings on each end of the top pole. Tighten the two included set screws on each side of the top of the end frame fitting.   If you are using any swing hangers, attach them at this time. Then slide the poles into each leg of the end frame fitting and tighten the included set screws for each leg. The set screws use a 6 millimeter Allen wrench. Make sure set screws are tight. Have multiple people lift structure and rotate structure, so that it is upright. Drive stakes into the ground to mark the location of each pipe on the swing set as determined above. Dig holes until you have the correct number of holes. Depth and diameter of hole will be determined by height of set, but average size holes are two feet deep and two feet in diameter.   Place a brick in the bottom of each hole with the widest edge facing up. The bricks will prevent the swing set from sinking in the dirt. Set the swing set in place. Lift the set and do not drag.   Hold a level on the top bar of the swing set. Add gravel under each brick to adjust the height as needed. Pour the contents of one 40-lb. bag of concrete into the wheelbarrow. Add the recommended amount of water to the concrete, and mix with the shovel until there is no dry material. Shovel the mixed concrete into a hole, add more concrete if necessary to fill hole. Smooth the concrete with a trowel. Repeat this step for each hole. Allow the concrete to dry for twenty-four hours, and check for sturdiness before allowing children to use swing set.

Safe Use: This is for children 0 – 12 years old only.   Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.

Maintenance: At beginning and end of each play season and once a month during play season perform general maintenance. Check that there is adequate protective surfacing. Check for sharp points, corners or edges on equipment. Check that set screws are still tight. Check that anchoring is still secure. Check for rust. Check for vandalism. Replace parts if necessary. Maintain detailed inspection and maintenance records for public-use playground equipment.

Any damage from vandalism, abuse or misuse VOIDS all warranties.

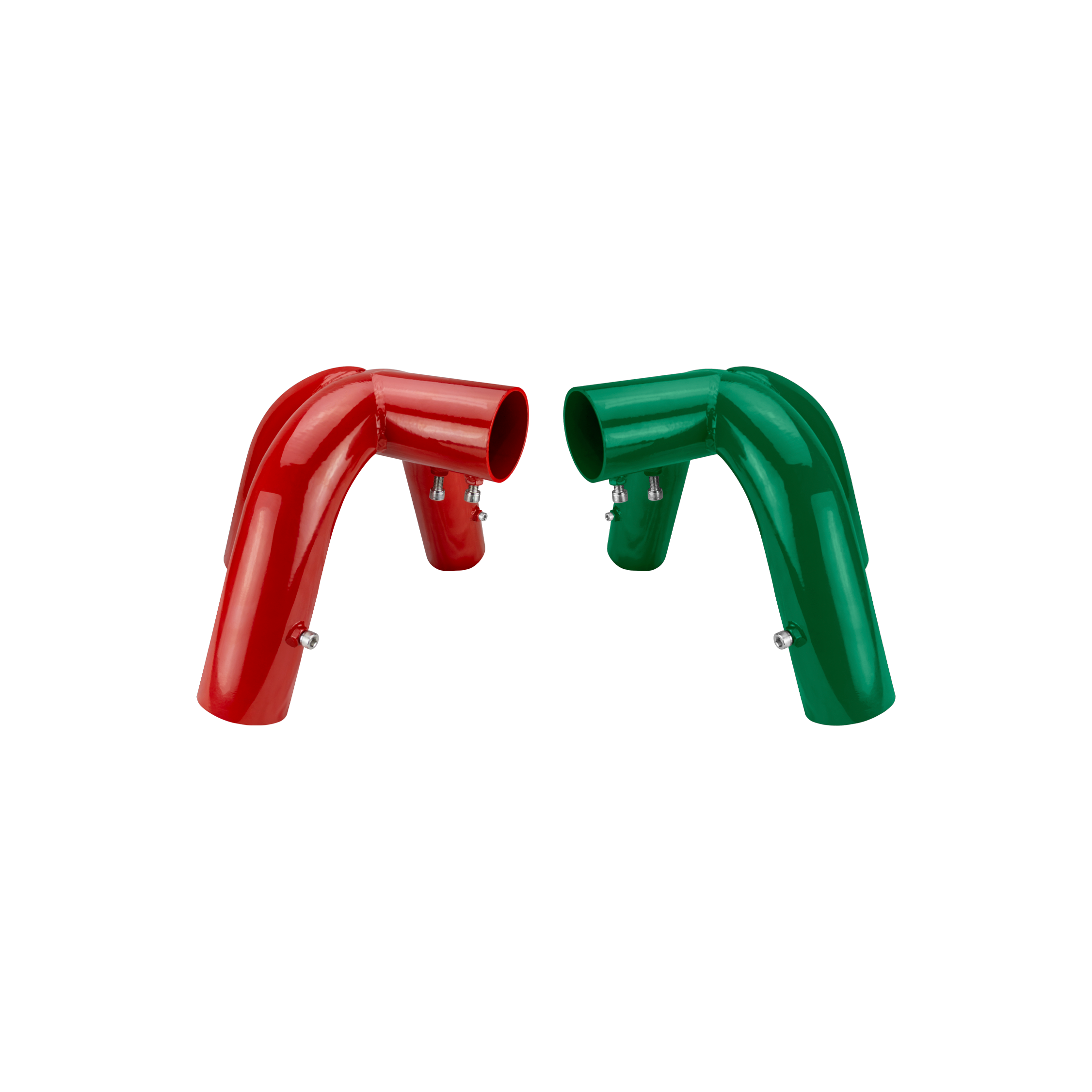

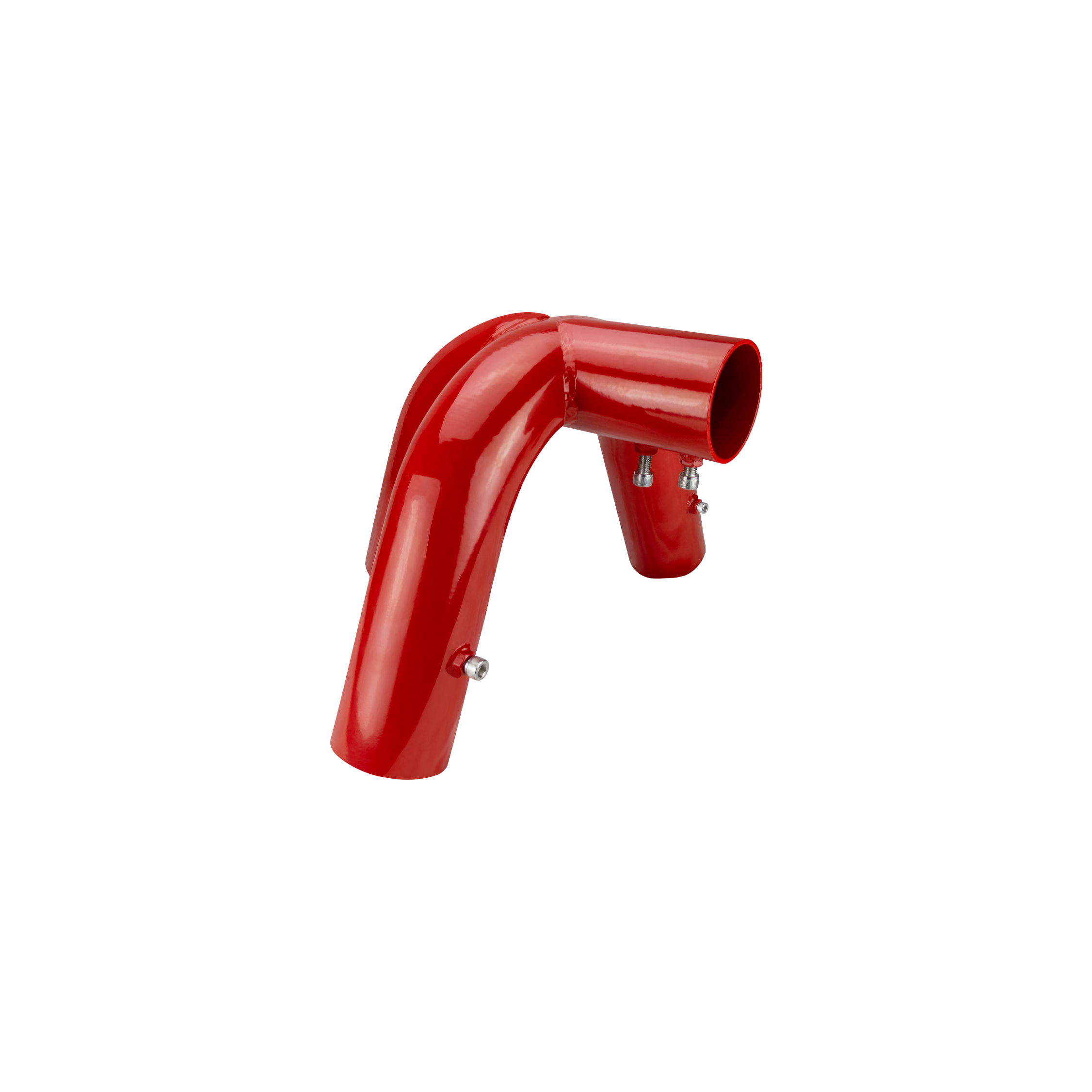

Colors:  Green or Red

SKU#A3050
