This product is intended for residential purposes only.

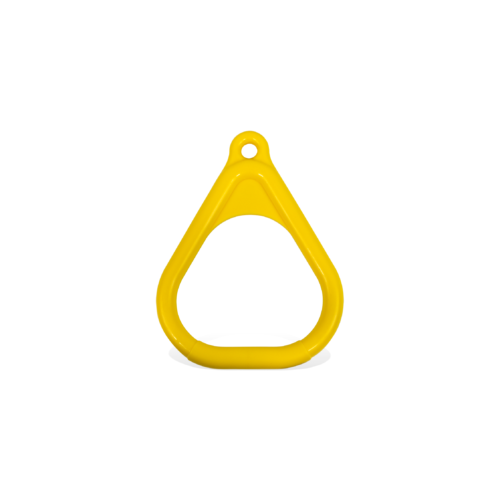

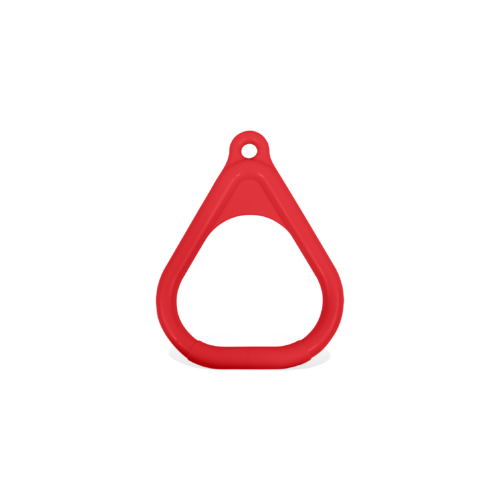

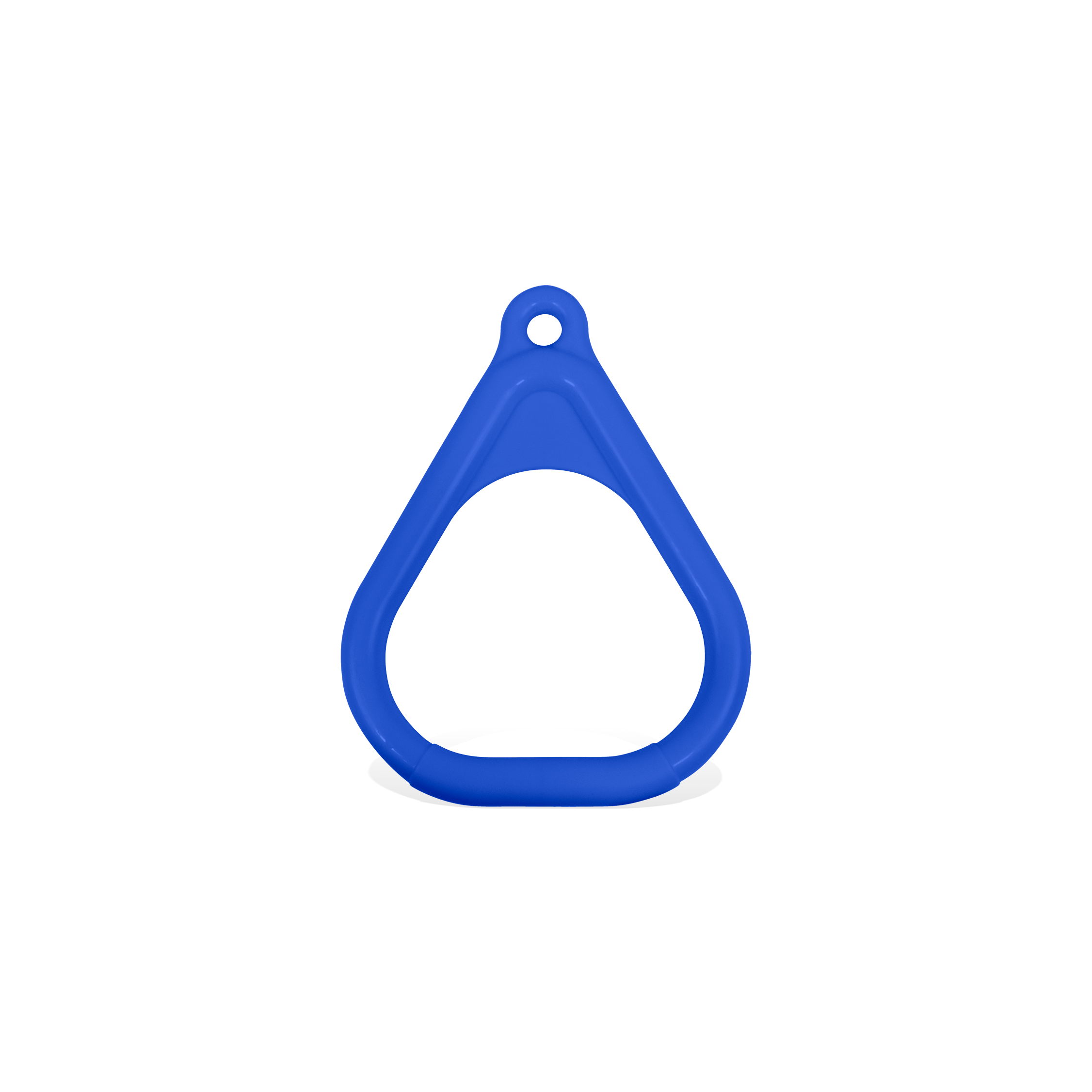

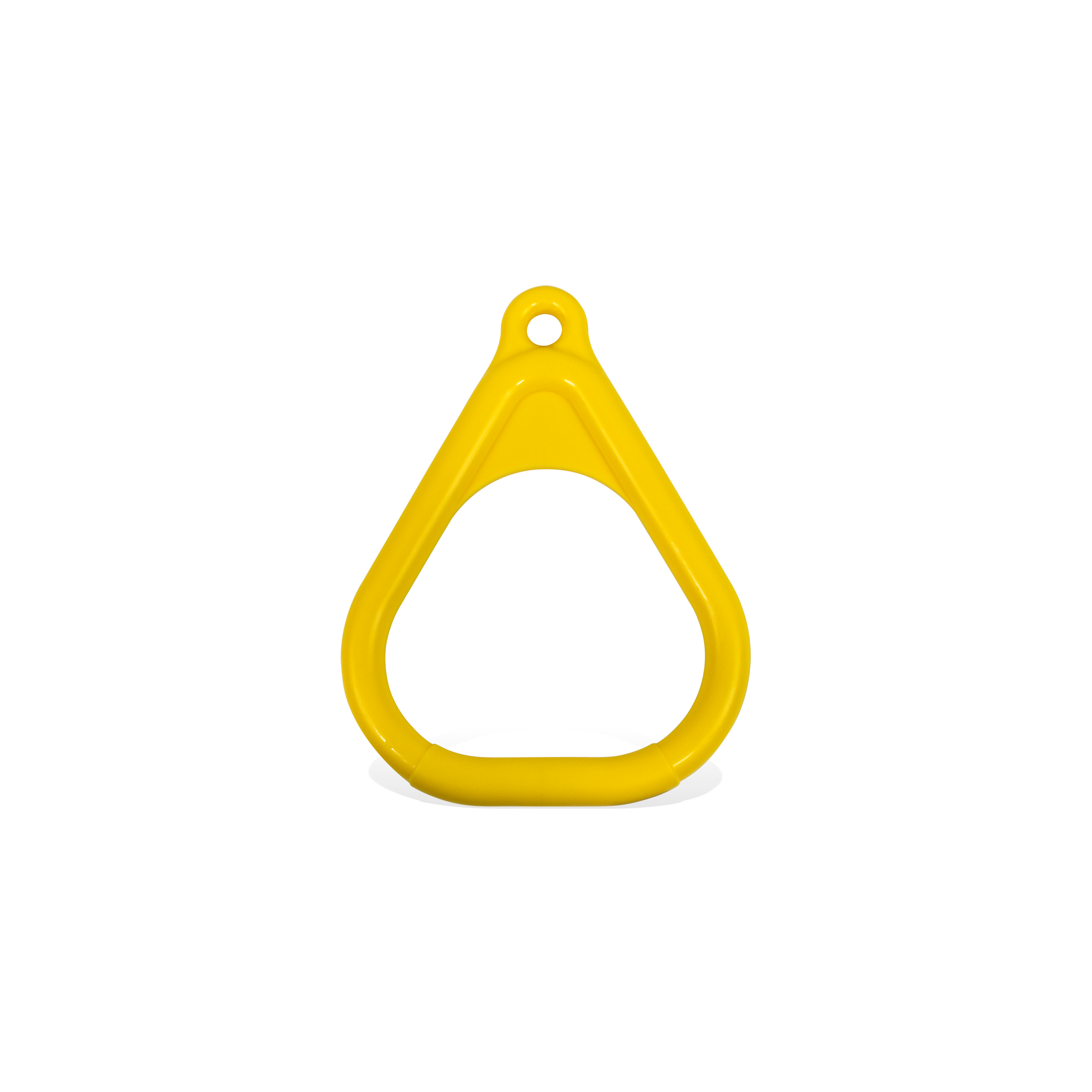

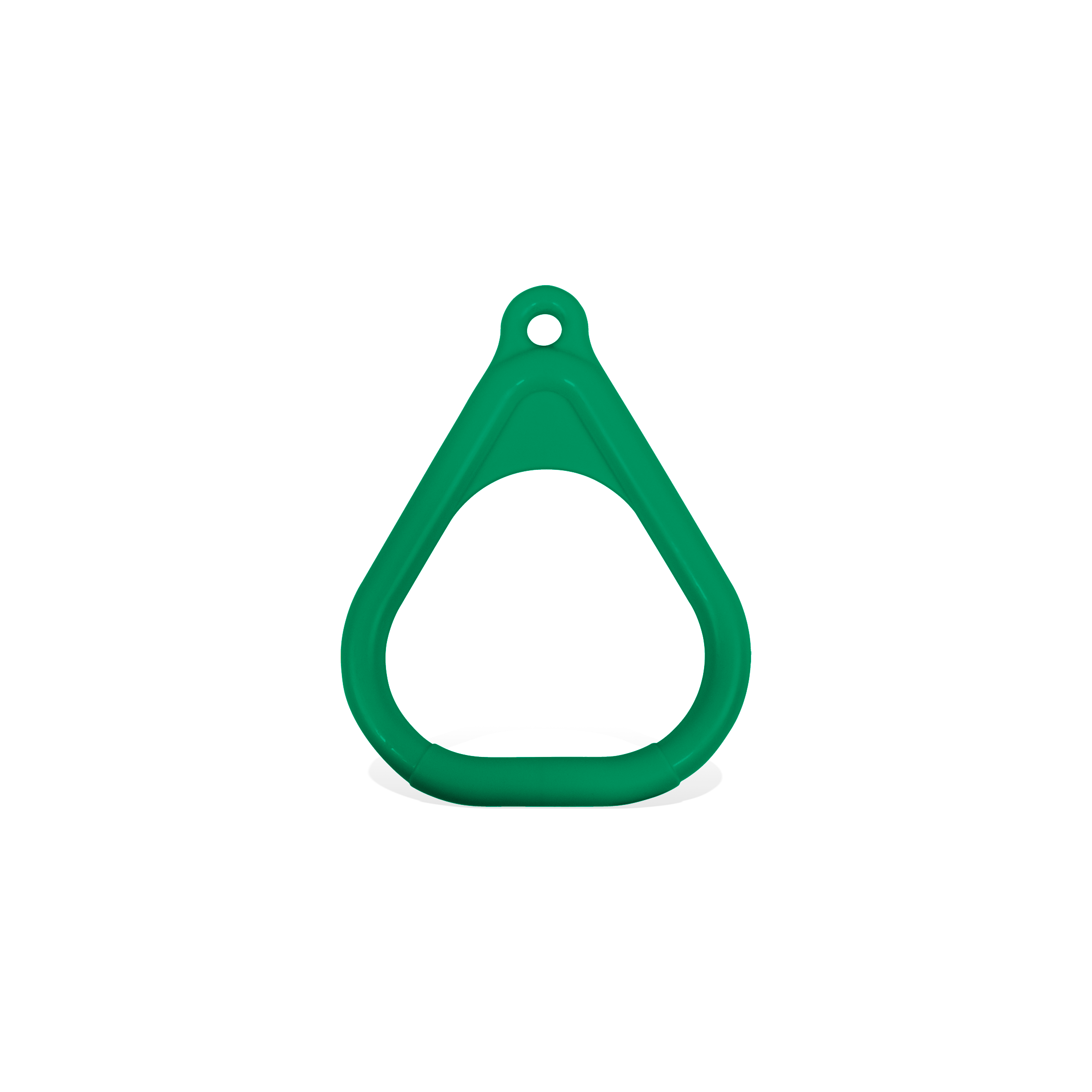

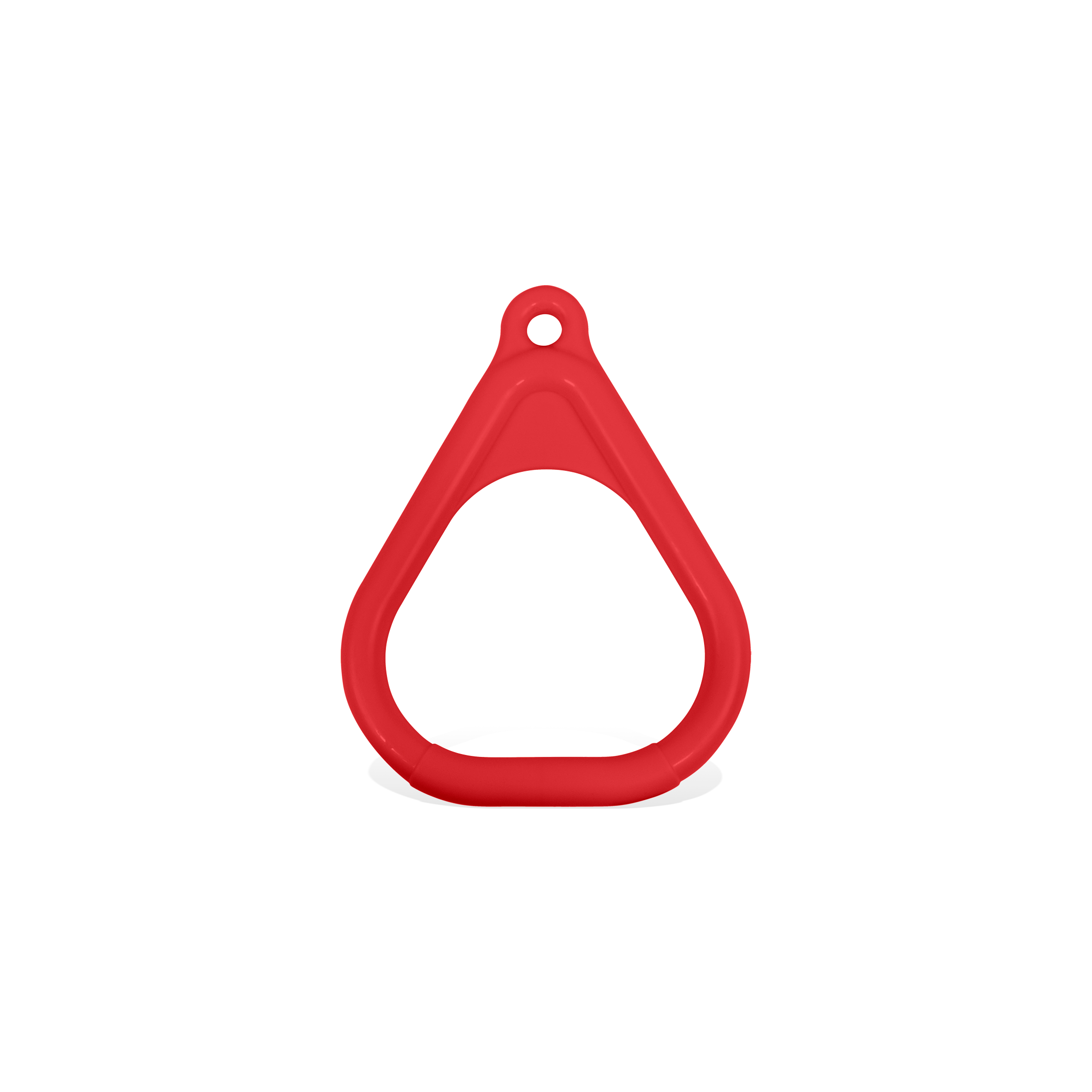

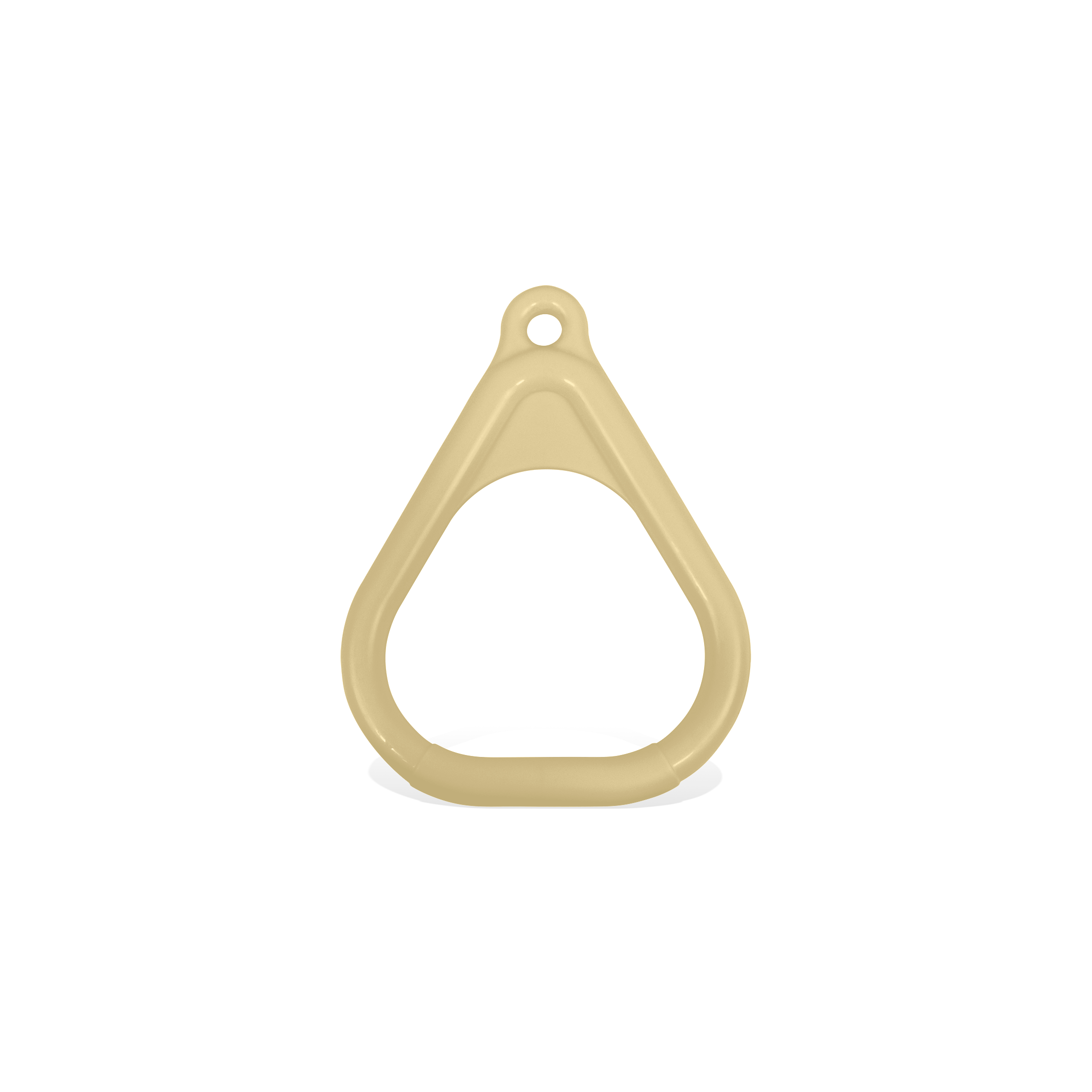

Our trapeze rings are designed with the time-honored triangle configuration, providing maximum strength without metal inserts. These rings are a cost-effective alternative to the lightweight trapeze rings that are commonly found on lower-end swing sets. Made with injection molded material, these rings are both durable and appealing to customers. They measure 8 ½” in length, have a 5” ID, 3 ½” grip, and a ½” hole for S-hooks. Compatible with A6500, A6000, and A5725. This product should last 2 years in harsh conditions and up to 5 years in optimal conditions, with some conditions possibly requiring replacement sooner. Tensile strength is rated at 700 lbs per ring. The price is per ring.
**Installation, Safe Use and Maintenance Instructions**
IMPORTANT: Please read for important information. In this material we have tried to provide some requirements stated in the CPSC Handbooks, ASTM F2373-11, F1487-11 and F1148-09. However, we in no way intend for this to be a complete list of requirements. Also these publications are updated frequently with changes therefore, you should read these publications yourself to determine if any part or installation could prove a danger to a child.
To help keep children safe from harm, review installation and maintenance instructions before installing equipment. These are located in the description of every product on our website. www.americanswing.com Download and print these instructions and keep in a safe place. Our website also has a “Product Testing Information” page. All products are tested for lead, phthalates and tensile strength. You can also call us at 1-800-433-2573 for more information or see http://www.cpsc.gov/cpscpub/pubs/325.pdf.
Due to the thermo dynamics and lower heat transfer properties of plastics they insulate better and don’t transfer the heat as quickly. Because of these properties, the Consumer Product Safety Commission (CPSC) recommends plastic slides and plastic surfaces over bare metal.
Regardless of lower heat transfer properties, plastic play equipment can still become hot enough ‐‐ in extreme temperatures and direct sunlight ‐‐ to cause burns. As is the case with all playground equipment, parents and supervisors must monitor the children in their care, make certain that the equipment is appropriate for their age, and always check playground surfaces for excessive heat before allowing children to play. For more information, contact IPEMA headquarters at www.communications@ipema.org or by calling 1‐717‐238‐1744.
Installation: Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 800-433-2573.
Attach fastener to trapeze ring and the chain or rope. Make sure that fastener is closed according to Figure A1.19. WARNING: Once the S-hooks have been re-opened they will have to be replaced to avoid injuries from coming open and/or breaking. Make sure that if you are using shackles they are also tightened.
Safe Use: This is for children 5 – 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged or wet.
Maintenance: Before and after play seasons and once a month during play season, check that fasteners are closed correctly. Make sure there is no cracked plastic especially where ring connects to fastener. Replace parts as need.
Any damage from vandalism, abuse or misuse VOIDS all warranties.
Colors: Blue, Green, Red, Tan and Yellow
SKU#A8720
